The following is a comprehensive analysis of the steel platform for storage shelves, covering the core structure and technical parameters:
Structural and design characteristics

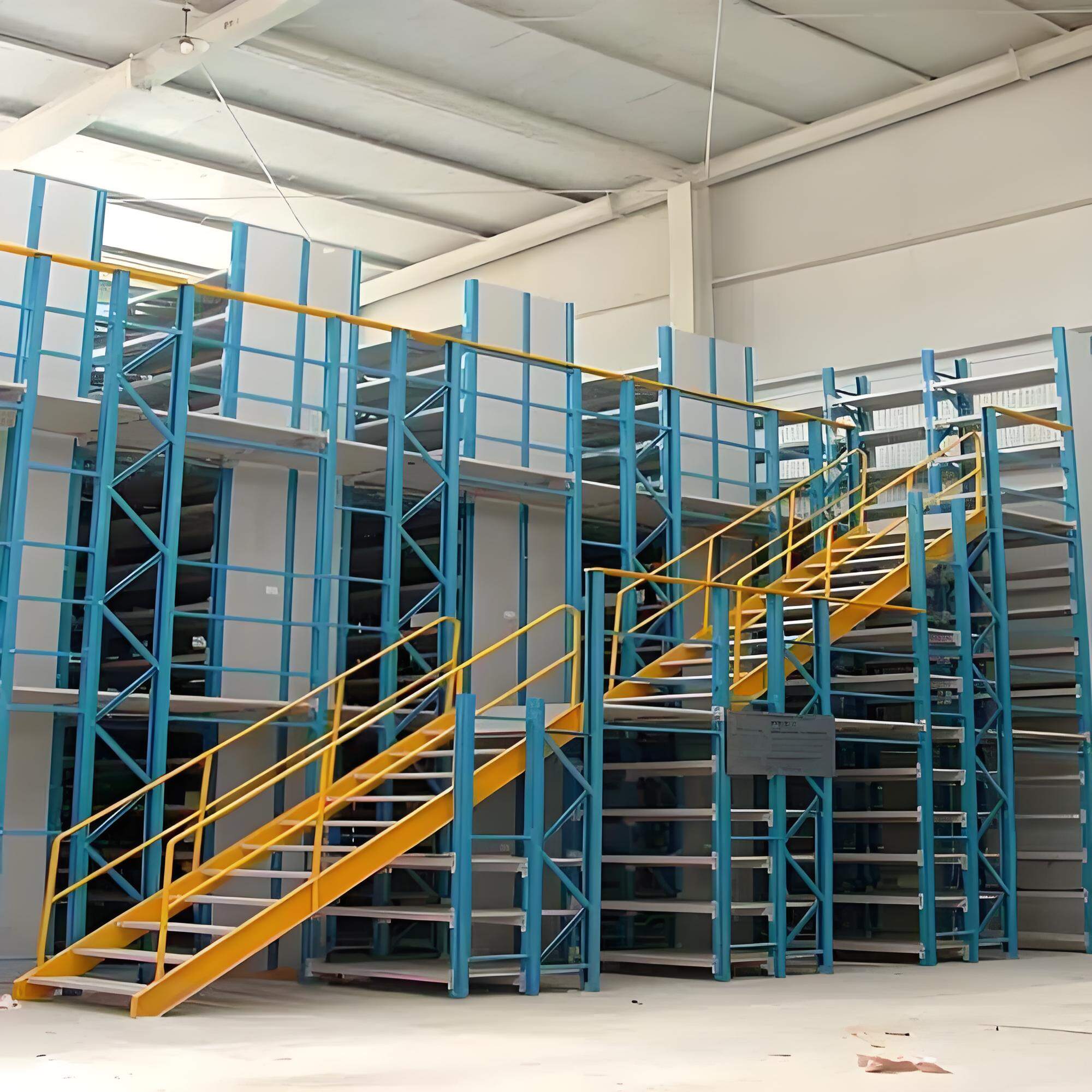

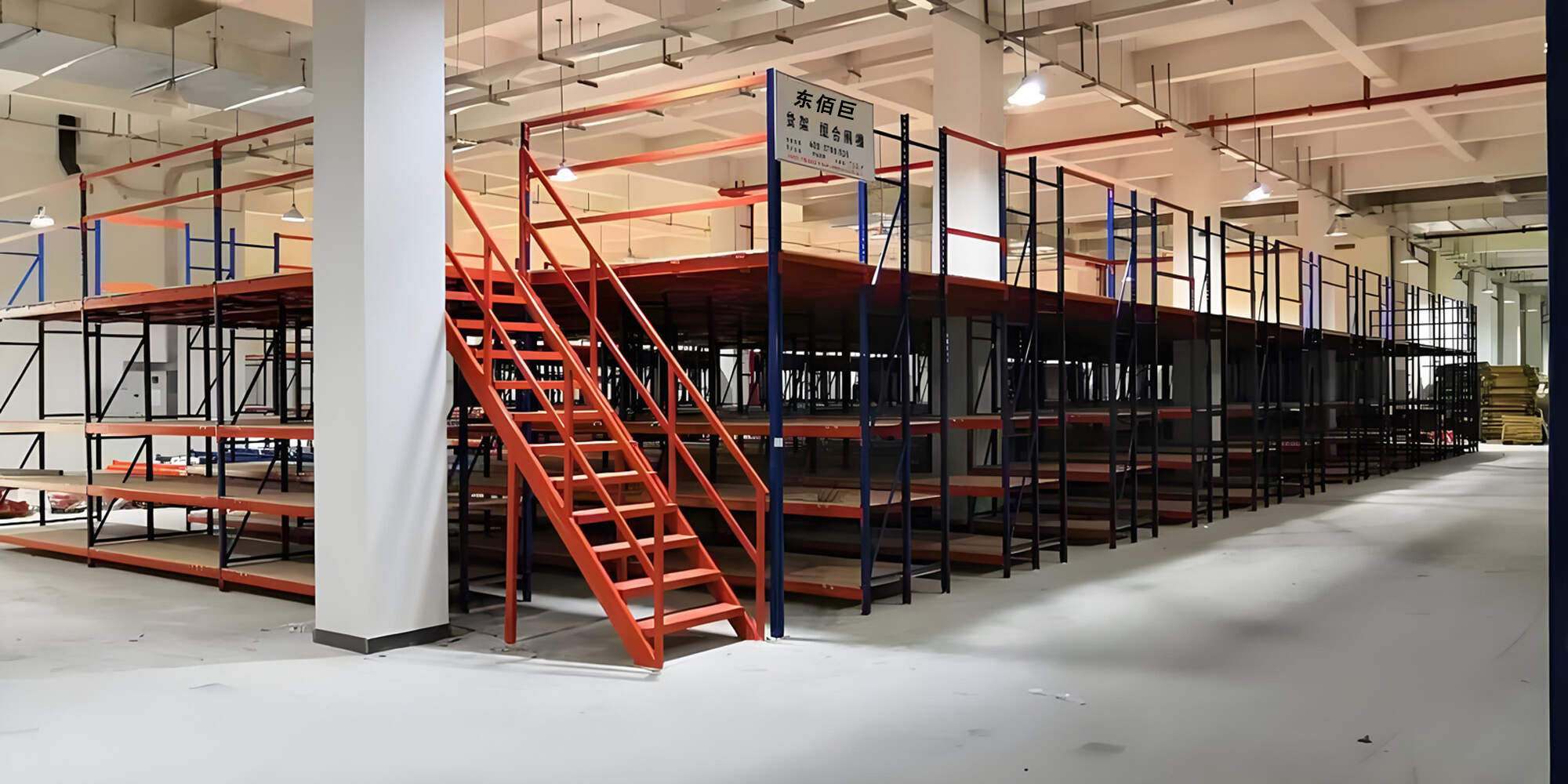

Infrastructure structure: a fully assembled steel structure system composed of primary and secondary beams, columns, floor panels (patterned steel plates/steel grilles), stairs and guardrails, supported by heavy shelves at the bottom.
By load: static load type (standard load 500–1800kg/m2) and power load type (adaptable to forklift operation);
According to the support method: independent column support, factory cow leg support or equipment-dependent platform.
Advantages of modular design
The span of the main beam supports 3-5 meters customization, the spacing of the secondary beam is 0.8-1.5 meters adjustable, and the floor height is flexibly configured with 2-3 layers of operating surfaces according to the bottom clearance (≥4 meters). The space utilization rate has increased by 60%-200%, and the lower shelf area and the upper platform can be divided to manage goods.
Technical parameters and load-bearing capacity
| Type of parameter | Scope of standards | The upper limit of special scenarios |
| Single-layer load-bearing |
500–1800kg/㎡ |
6000kg/㎡（super heavy design） |
| Seismic rating | 7 degrees forte, horizontal load coefficient 0.25 | |
| Column precision | Vertical error ≤1/1000, span tolerance ±2mm | |
| Passing requirements | Channel width ≥1.2m, net height≥1.8m | Top floor operating surface ≤8 meters |
Note: Heavy platforms need to be set up with load limit signs, and mechanical work space needs to be reserved when adapting to hydraulic lifting equipment.
